CB100 Transport Ticketing Solution_AIDC Mobile Terminal and Solution Supplier|CILICO

CB100 Transport Ticketing Solution

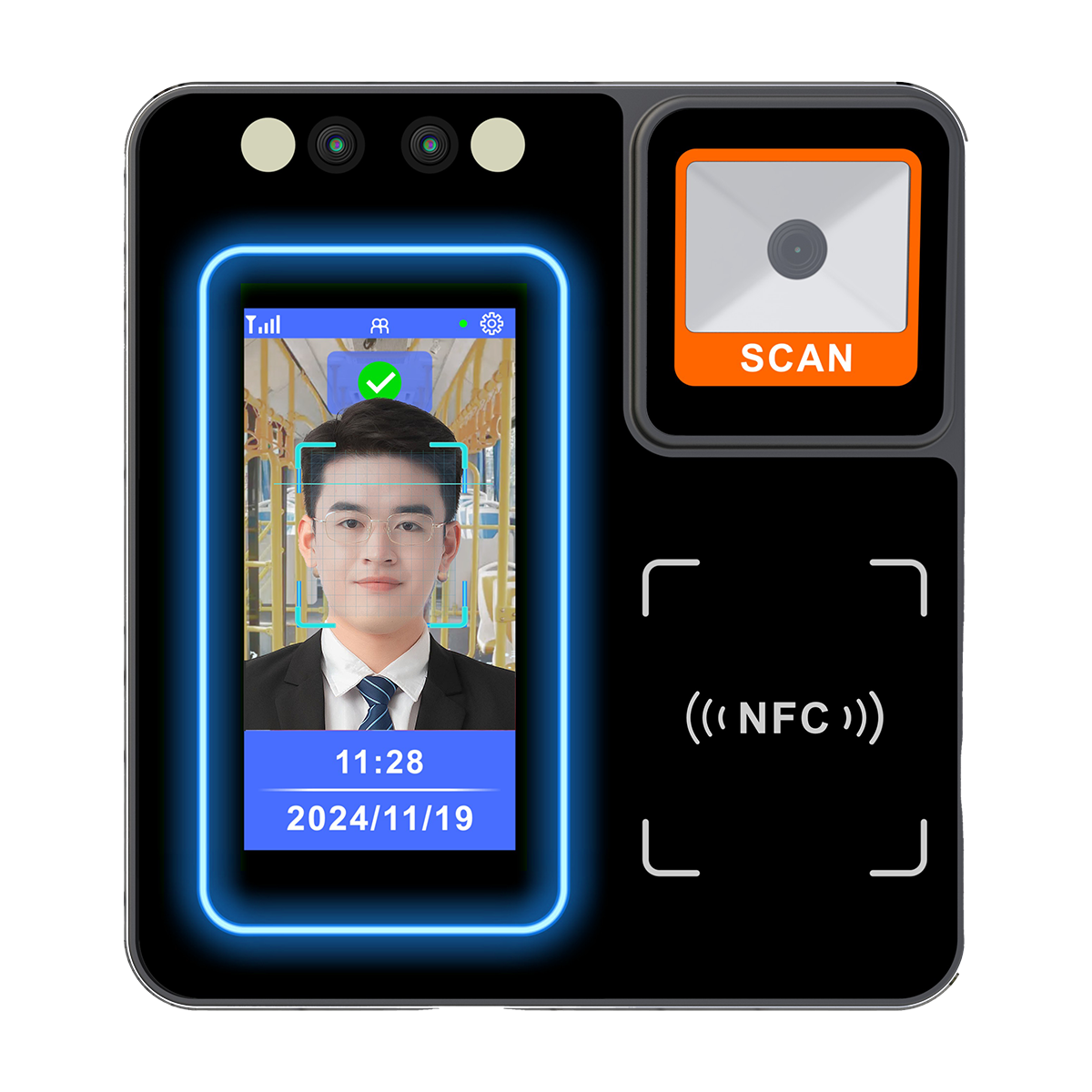

CB100enabling easy facial recognition and intuitive operation. Whether used as a bus ticket checker or an event ticket scanner, its user-friendly interface ensures smooth interactions for operators and passengers alike.

Get Quote

Features
Specification
Download

Get Quote

Related Applications

Bus Station
Ferry Port
Seaport
Railway Station
Airport
School

Specification

Product Model: CB100

IP level:IP65
Dimension (mm):224*204*47mm
Size:5.72 inches
Display:IPS 1440*720
Touch pane:G+FF multi-point capacitive Support gloves and wet hands mode
Operation system

OS:Android11 (Optional: Android13)
CPU:Octa-core 2.2GHz, 12nm A53
Capacity:4+64GB (Optional : 8+128GB)
Extended storage:MicroSD up to 256GB
Network

WWAN：Asia+Europe,2G GSM B2/3/5/8,3G WCDMA B1/2/5/8 CDMA BC0,4G TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/7/8/20
SIM card slot type:Mini SIM card + TF card 8 PSAM card (The card holders are all flip up type)
Camera

(Stereo vision camera) Face recognition：MP (optional)
Standard：Light sensor, distance sensor, gravity acceleration sensor, geomagnetic sensor, gyroscope
Extension slot

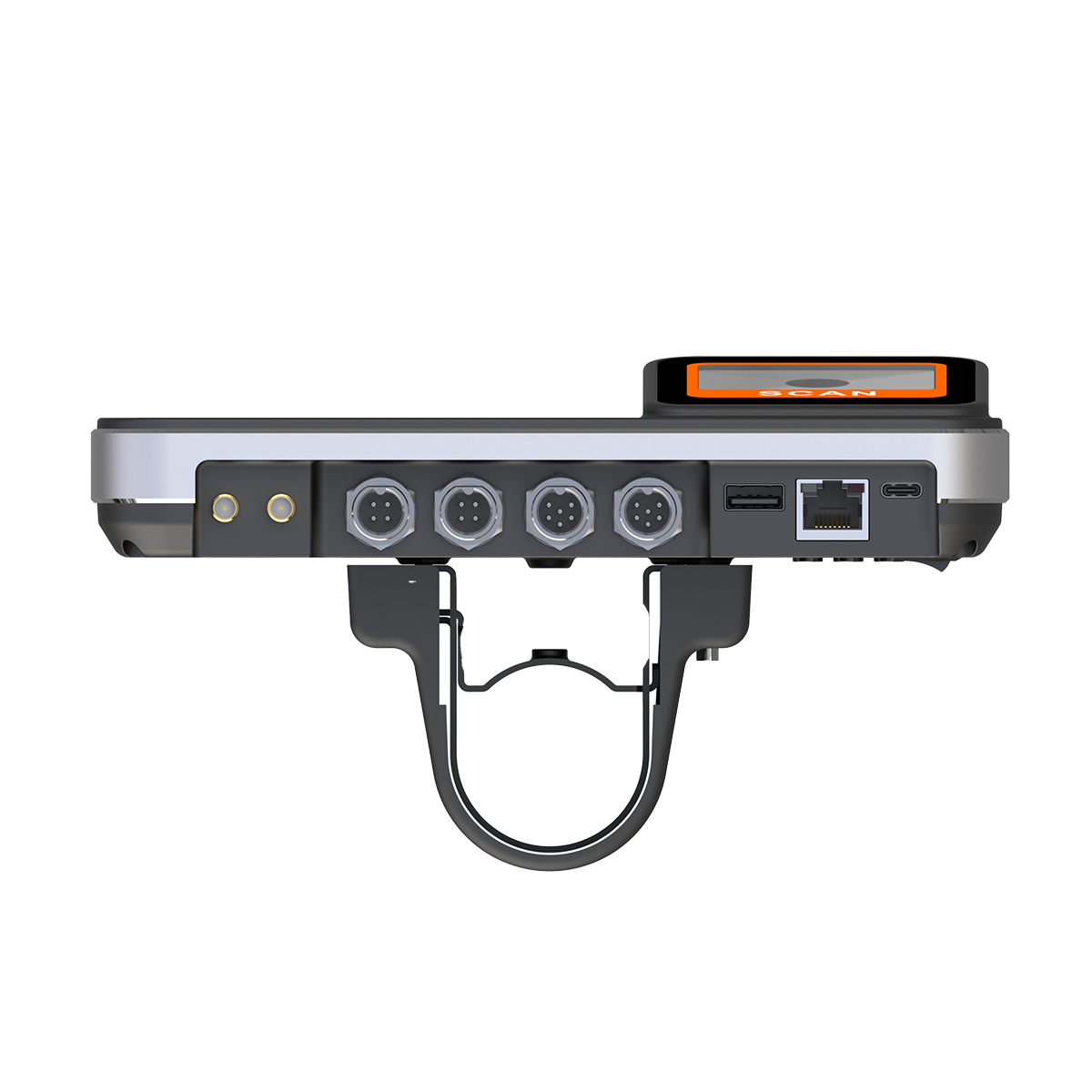

UsB：Type-C (USB 2.0),USB-A ,GPIO IN/OUT ,WLAN 485-CAN, RS232
SIM card slot type:Mini SIM card + TF card 8 PSAM card (The card holders are all flip up type)
Wireless:GPS,GPS + Glonass + Beidou/Galileo, support AGPS Optional: high-precision GNSS module External GPS antenna interface SMA to IPXE + built-in GPS antenna
WLAN Protocol:IEEE 802.11a/b/g/n/ac, dual-band (2.4GHz/ 5GHz)
Bluetooth:Bluetooth 5.0
NFC:ISO14443 A/B, ISO15693 protocols, Mifare compliance
NFC card reading:3-color RGB light strip
Scan module:1D/2D barcode
