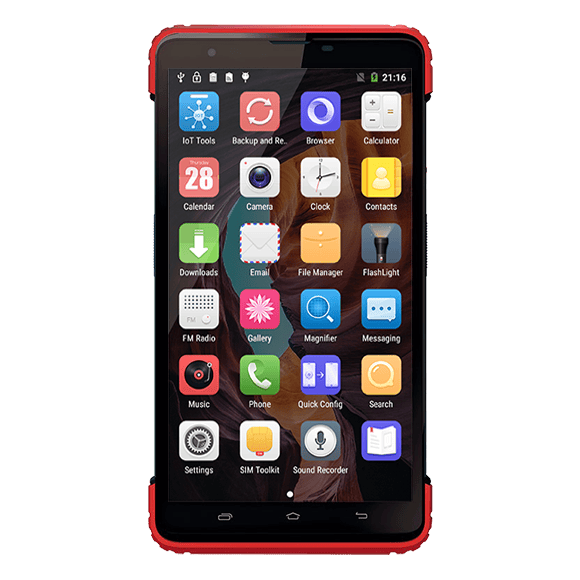

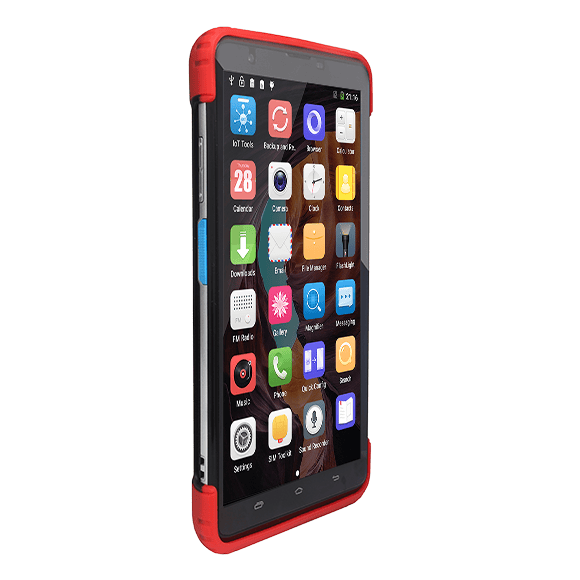

CILICO C7X

7 Inch Rugged Android Tablet PC

Built for enterprises and designed for younger users.

     7 Inch High Definition Screen

        High Definition (1280 x 720) bright color LCD with backlight

        Premium display technology and the brightest screen in its class

        Readable in sunlight, outdoor Viewable with LED backlight

        Easy to handle report pictures and office software etc.

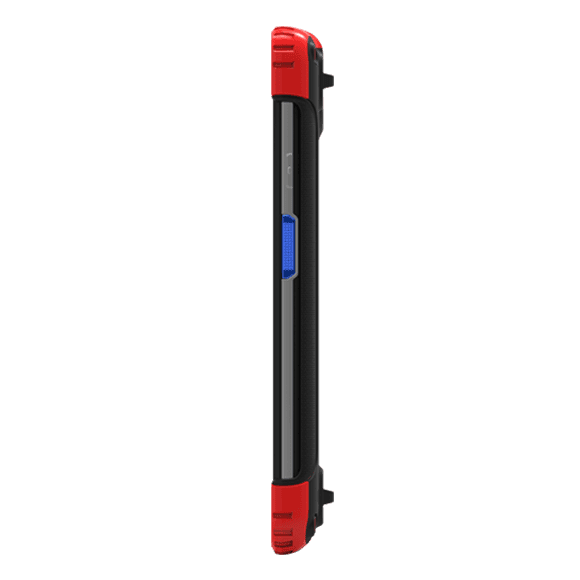

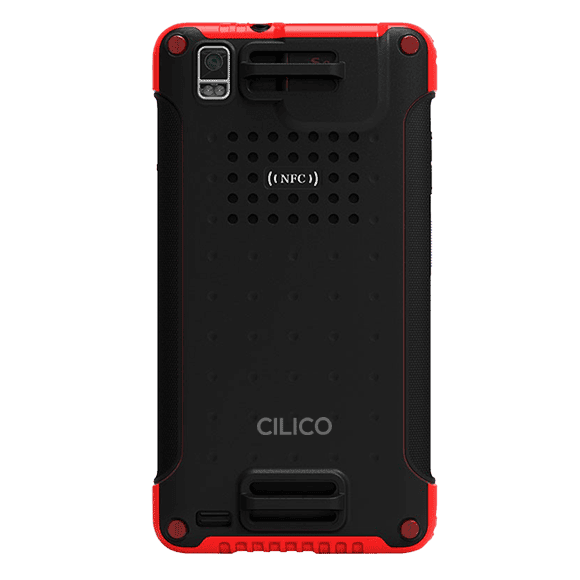

Rugged and Portable Design

Industrial-grade protection level, plastic-covered body, more robust

Two-color injection-molded protective armor and non-slip wristband design provide users with many conveniences

Supports vertical screen operation

The distinctive vertical screen operation mode is the greatest advantage when compared with other tablet brands in the industry, It's a powerful assistant for operators to take pictures and view vertical screen forms.

Highly integrated design for widely industry applications
Barcode/RFID/PSAM/NFC/Camera

Chain Stores

The large display and high-value product design perfectly match the needs of sales management and inventory management in fashion shoes and apparel,jewelry retail,high-end duty-free stores.

               Outdoor inspection

                      The features such as large display,strong light

                      visibility,multi-touch and glove-oprated make

                      C7X stand out in power inspections,smart

                      construction sites and railway inspections.

Intelligent Manufacturing

C7X is very flexible in programming. It can connect to mainstream WMS and MES system management software, and has a broad customer base in the field of intelligent manufacturing.
Applications
C7X series mobile computers are widely deployed in healthcare, car manufacturing, subway inspection, warehouse management, logistics etc.
  • Healthcare Healthcare
  • Logistics Logistics
  • Energy Energy
  • Manufacturing Manufacturing
  • Inspection Inspection
  • Warehousing Warehousing
Specifications
  • Basic Parameters
    Size 188×99 ×19mm(L×W×H)
    Weight 406g (including battery)
    Display 7.0 inch IPS screen, Resolution: 1280*720
    Touch panel Capacitive
    Backlight LED Backlight
    Battery Li-polymer,7200mAh,3.7V
    Uptime:more than 10hours Standby time:100 hours
    Card slot 2 SIM card slots, 2 PASM card slots(optional)
    1 Micro SD card slot(Maximum 128G)
    Communication interface Type-c, Support OTG
    Network connections 4G/3G/2G、Wi-Fi、GPRS、 Bluetooth
    Notification Warning Tone,Multi-color LED;Vibration
    Keyboard On-screen Keyboard+3 Virtual Keys:Back、Home、Menu
    Audio-frequency Microphone, Loudspeaker and Receive
    Physical Keys Power, left scan, right scan, volume+, volume -
    Headset Support 3.5mm headset jack
    Power adaptor Input:100-240V,50/60Hz 300mA Output:5V,2A
    Performance Parameter
    CPU Octa-core 2.0GHz
    OS Android 11 with GMS
    Memory 3GB RAM/32GB ROM 4GB RAM/64GB ROM
    Working environment
    Operating temperature -20℃ to 60℃
    Humidity 0 to 95% (non-condensation)
    Drop specification Within operating temperature range, it can withstand several drops
    from 1.0mheight to the concrete ground
    Roll specification 300 times of 1.6 feet / 0.5 m rolls; higher than IEC roll standard
    Vibration 4g SPK Sine (5Hz to 2KHz); 0.04g2/Hz randomness (20Hz to 2KHz);
    60 minutes per axle, 3 axles
    Electrostatic protection +/- 10kv air discharge +/-6kv contact discharge
  • Data Collection
    Scanning engine Professional scanner,one/two-dimensional barcode
    Supported 1D barcode types UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN,
    Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39,
    Code 32, Code 93, Code 11, Interleaved 2 of 5,Discrete
    2 of 5,Codabar,MSI,Chinese 2 of 5,Korean 3 of 5,Matrix 2
    of 5,Inverse 1D,GS1 DataBar,Composite Codes. etc
    Supported 2D barcode types PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse,
    Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec
    Inverse, Postal Codes: US Postnet, US Planet,UK
    Postal, Australian Postal, Japan Postal, Netherlands KIX
    Code,USPS 4CB/One/Intelligent Mail,UPS FICS Pstal. etc
    Camera Front camera: 5 MP
    Rear camera:13 MP,auto-focusing
    Rear camera flash; support flashlight
    Wireless Communication
    WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE
    WIFI WIFI frequency: 2.4GHz & 5GHz WIFI protocol:802.11a/b/g/n/ac
    GPS GPS\BDS\GLONASS
    Bluetooth Bluetooth 5.0
    Internet of things function
    NFC Operating frequency: 13.56MHZ
    Support protocol: MifareClassic (MF1) NDEF, NfcV (15693)
    Ultralight (MF0), IsoDep(Quasi CPU MF3), IsoDep (CPU)
    Reading distance: 0-5cm (depending on the type of card)
    RFID Operating frequency:
    CN: 920-925MHz
    US: 902-928MHz
    EU: 865-868MHz
    JP:916-921MHz(w LBT)
    JP:916-923MHz
    Support protocol: ISO18000-6C/EPC C1G2
    Reading distance:0.8m (depending on the label)
    Security PSAM Supporting ISO7816 standard, supporting 2 PSAM cards(optional)
    Sensors Light sensor, distance sensor,
    gravity acceleration sensor,
    geomagnetic transmission sensor,
    Hall sensor (optional)
    Others
    Certification CE/CCC/UN38.3/RoHS/FCC
    Accessories Power Adapter/USB cable/ battery/ protective cover
    tempered glass screen protector/ hand-strap /stylus (optional)
