• Android 7.1
  • IP68
  • 4G/Dual-band Wi-Fi
  • OCR
  • High-performance scanner
  • RFID
  • NFC
  • GPS

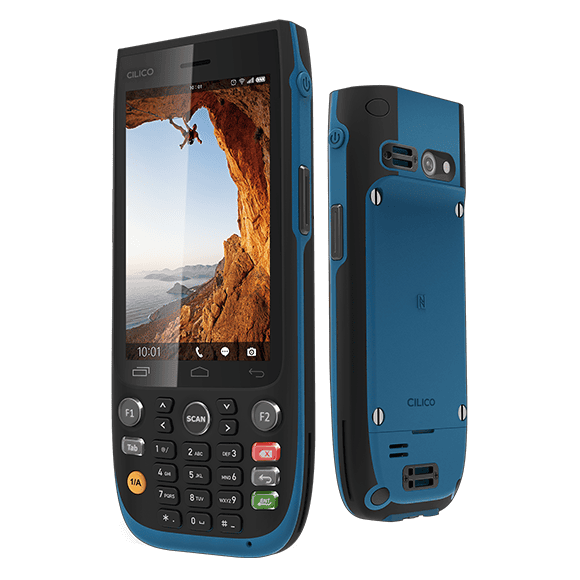

CILICO ROCK™

Corning Gorilla Glass, special anti-fall design, still working after 1.5 meter drop, 300 times 1 meter tumbling test.

4inch WVGA industry grade capacitive touch screen is sunlight-readable and scratch-resistant, more suitable for one-handed operation in the AIDC industrial Scenario.

Three-proofing process to build strong body

IP68 dustproof and waterproof

Special anti-fall design

High-performance design


Physical Button


Touch Panel Design

Highly integrated design for widely industry applications
Barcode/RFID/PSAM/NFC/Camera

Intelligent Manufacturing

Flexible programming, can be connected with mainstream WMS, MES system management software

Customized shortcut key design, providing more convenience for device operation

At present, more than 300 intelligent manufacturing companies are using Rock F750 mobile computer

Power Inspetction

Excellent 4G communication performance, high-definition dual-camera configuration, and excellent protection level can meet the needs of harsh power inspections.

           Cold Chain Logistics

                 IP68 excellent protection level, can withstand -20 ~ 40 ℃

                 high and low temperature environment, convenient physical

                 keyboard input is widely favored in the cold chain logistics

                 field

Applications
F750 series mobile computers are widely deployed in manufacturing, pipeline inspection, warehouse logistics etc.
  • Manufacturing Manufacturing
  • Energy Energy
  • Healthcare Healthcare
  • Warehouse Warehouse
  • Inspection Inspection
  • Retail Retail
Specifications
  • Physical Parameter
    Size 170*73*20.5mm (L×W×H)
    Weight 315g(with battery)
    Display 4.0 inch
    IPS screen Resolution: 800*480
    Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
    Backlight LED Backlight
    Battery Li-polymer, 4100mAh
    Working up to 8 hours
    Standby up to 280 hours
    Card slot 1 slot for SIM
    2 slots for PSAM
    1 slot for Micro SD (Maximum 64G)
    Communication interface Micro USB 2.0, OTG
    Network connections 4G/3G/2G, Wi-Fi, GPRS, Bluetooth, GPS, BDS, GLONASS
    Keyboard Physical keypad
    2 program key(F1, F2)
    3 scan keys
    delete/back/enter/TAB/1/A/shortcut key
    Performance
    CPU Octa-core 2.5GHz
    OS Android 7.1
    Memory 2GB RAM/16GB ROM
    Communication
    WWAN GSM/GPRS/WCDMA/CDMA/ TD-SCDMA/TDD-LTE/FDD-LTE
    Wi-Fi Wi-Fi frequency: 2.4GHz & 5GHz
    Wi-Fi protocol: 802.11a/b/g/n/ac
    GPS GPS/BDS/GLONASS
    Bluetooth Bluetooth 4.2
  • IoT Functions
    NFC Operating frequency: 13.56MHz
    Support protocol: MifareClassic (MF1), NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quas:CPU MF3), IsoDep (CPU)
    Reading distance: 0-5cm (depending on the card type)
    RFID Operating frequency:
    US: 902-928MHz; 4 - 30 dBm (EIRP)
    EP: 865-868MHz; 4 - 30dBm (EIRP)
    Support protocol: ISO18000-6C/EPC C1G2
    Reading distance 80cm
    (deponding on the tags and environment)
    Security PSAM Supporting ISO7816 standard
    Supporting 2 PSAM cards
    Sensors Light sensor, proximity sensor, gravity sensor, Hall sensor (optional)
    Camera
    Camera Front camera:2-megapixel
    Rear camera:8-megapixel auto-focusing ; with LED light, support flashlight
    Barcode Scanning
    2D Scanner Zebra/Honeywell scanning engine
    1D Symbologies UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Composite Codes, etc.
    2D Symbologies PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code,USPS 4CB/One/Intelligent Mail, UPS FICS Pstal etc.
