  • Infrared temp test
  • 5.0”screen
  • Android 7.1/9.0
  • Octa-core 2.5GHz
  • 4G/Dual-band Wi-Fi
  • High-performance scanner
  • NFC
  • IP65

Smart Handheld Temperature Reader

Rapid Deployment in Multi Scenarios


Hospitals, schools, airports, scenic spots, conventions and exhibitions, etc.

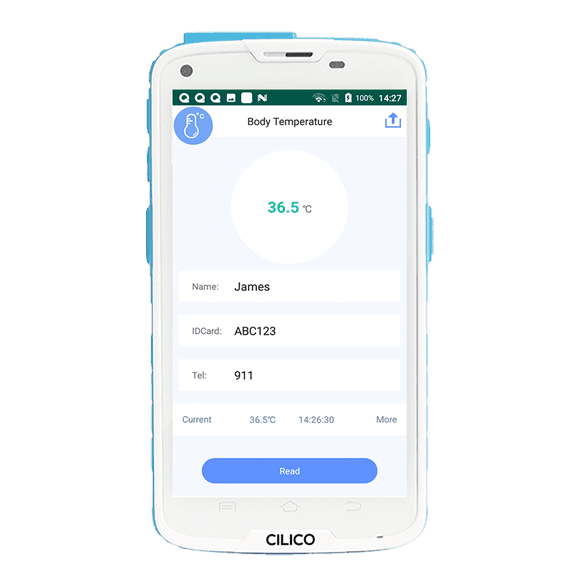

Temperature detection + Identification + Data processing

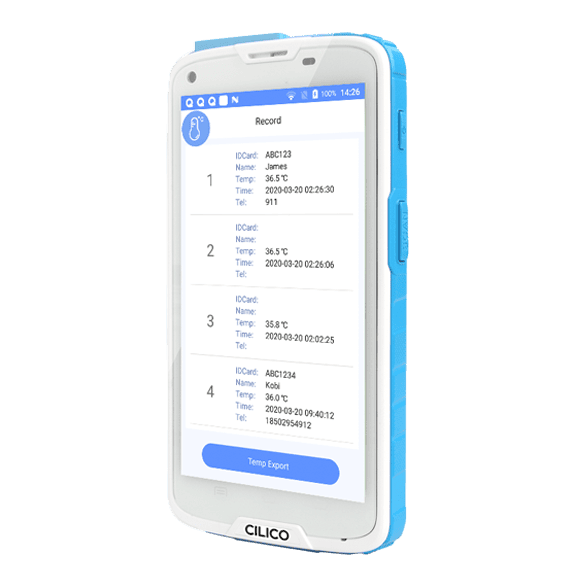

The temperature measurement data is uploaded in real time, and the temperature information can be traced back to provide big data support for epidemic prevention and control.

Non-contact

Medical-grade infrared temperature measurement

Portable and easy to deploy

Flexible use in multiple scenarios

Support Barcode/RFID/NFC/OCR

Highly integrated design for widely industry applications
Barcode/RFID/PSAM/NFC/OCR

                           Hospital application

                                        Pre-examination, outpatient service, and

                                        clinical application of in-hospital triage

                                        provide an integrated solution


Campus epidemic prevention

One person, one file, rapid deployment,

traceable solution

Exhibition epidemic prevention

Temperature measurement, identity verification, data reporting

To ensure the audience "healthy participation"

Specifications
  • Physical Parameter
    Size 147×78 ×19mm(L×W×H)
    Weight 233g (including battery)
    Display 5.0 inch
    IPS screen Resolution: 1280x720
    Touch panel Capacitive
    Backlight LED Backlight
    Battery Li-polymer,4000mAh,3.7V
    Uptime:more than 8 hours
    Standby time:300 hours
    Card slot 1 slot for SIM
    2 slots for PSAM and 1 slot for Micro SD (Maximum 128G)
    Communication interface Type-c, OTG
    Network connections 4G/3G/2G, Wi-Fi, GPRS, Bluetooth
    Keyboard On-screen Keyboard+3 Virtual Keys: Back, Home and Menu
    IoT Functions
    NFC Operating frequency: 13.56MHz
    Support protocol: MifareClassic (MF1), NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quas:CPU MF3), IsoDep (CPU)
    Reading distance: 0-5cm
    (depending on the card type)
    RFID(Optional) Operating frequency:
    US: 902-928MHz
    EU: 865-868MHz
    JP:916-921MHz(w LBT)
    JP:916-923MHz
    Support protocol: ISO18000-6C/EPC C1G2 Reading distance:0.8m
    (depending on the label)
    Security PSAM Supporting ISO7816 standard
    Supporting 2 PSAM cards
    Sensors Light sensor, proximity sensor, gravity sensor, Hall sensor (optional)
    Performance
    CPU Octa-core 2.5GHz
    OS Android 7.1/9.0
    Memory 3GB RAM/32GB ROM
  • Temperature Mearsurement Data
    Measurement site Human forehead / object
    Measuring method Non-contact / infrared
    Measuring distance 0~6cm
    Temperature measurement time ≤1s
    Measuring range Human body mode: 32 ~ 42.9 ℃
    Object mode: 0-100℃
    Resolution 0.01°C
    Measurement accuracy Human body mode: 32 ~ 42 ℃ ±0.2℃
    other range ±0.3℃
    Object mode: ±1.0℃
    Clinical reusable ±0.3℃
    Operating environment Temperature 0 ~ 40 ℃, relative humidity ≤85% Rh,
    air pressure 60-110Kpa
    Barcode Scanning
    2D Scanner Zebra/Honeywell scanning engine
    1D Symbologies UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,Korean 3 of 5,Matrix 2 of 5,Inverse 1D,GS1 DataBar,Composite Codes. etc
    2D Symbologies PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code,USPS 4CB/One/Intelligent Mail,UPS FICS Pstal. etc
    Communication
    WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE
    Wi-Fi Wi-Fi frequency: 2.4GHz & 5GHz
    Wi-Fi protocol: 802.11a/b/g/n/ac
    GPS GPS/BDS/GLONASS
    Bluetooth Bluetooth 4.2
