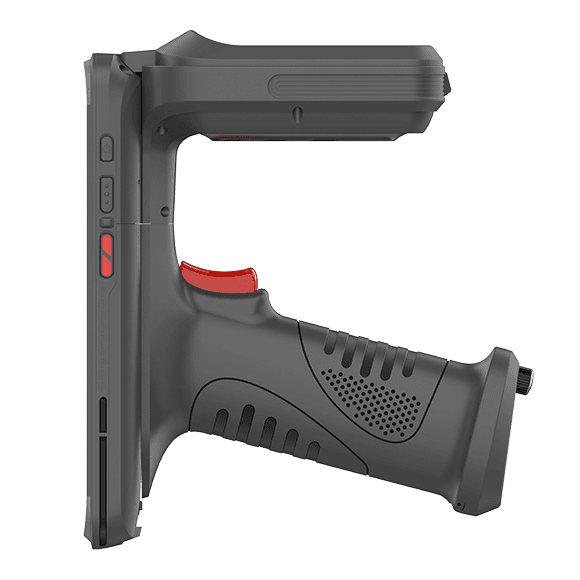

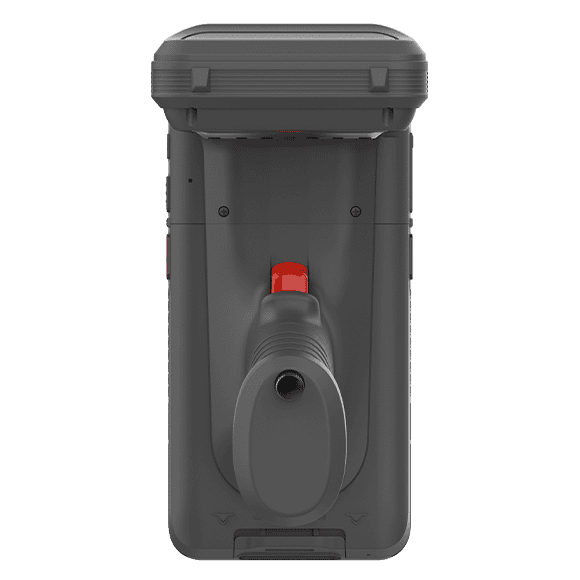

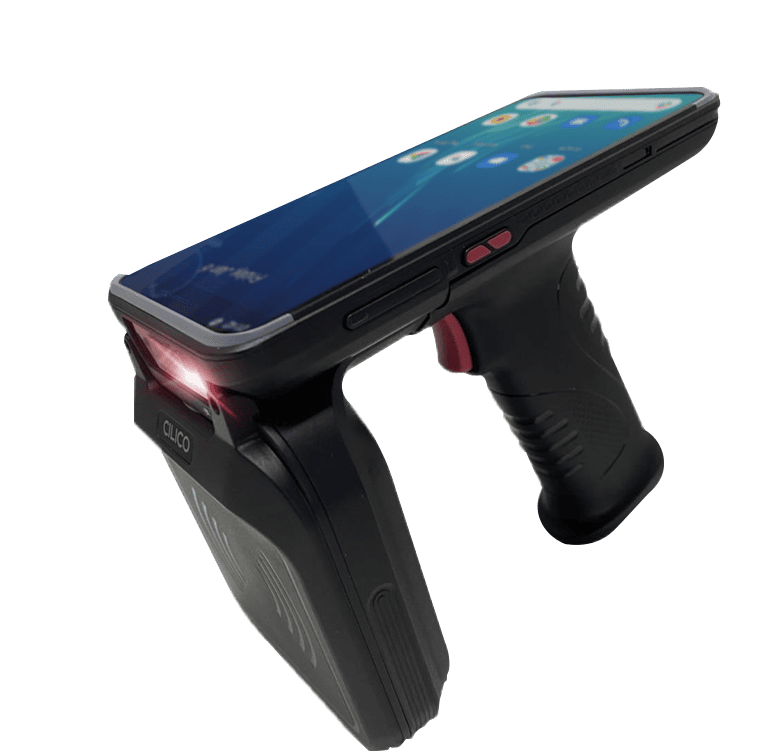

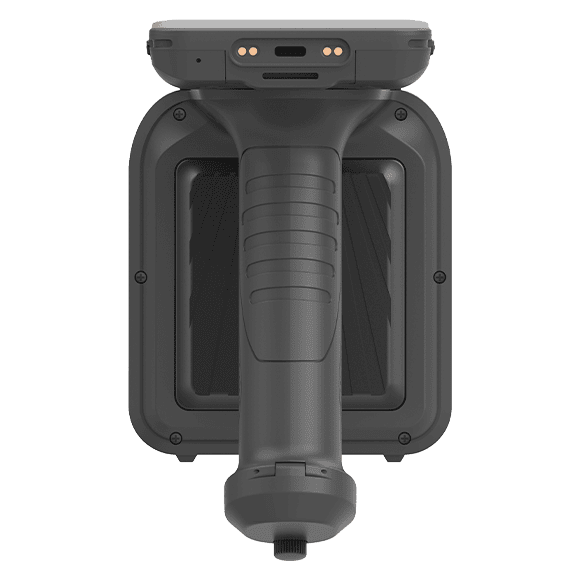

Aurora C80R Long Range UHF RFID reader
Aurora C80R is a high-performance UHF RFID smart handheld terminal, which integrates powerful UHF RFID functions. The data acquisition is accurate and fast, the reading range is wide, and the reading distance in the outdoor open environment is more than 30 meters. Meanwhile, it supports optional barcode/QR code reading, adopts Octa-core processor, and has various functions and complete configuration. Moreover, it has a large-capacity battery up to 12200 mAh.
-
Android 11
-
RFID
-
Octa-core 2.0GHz
-
5.72”inch IPS
-
4GB RAM+64GB ROM
-
4G/Dual-band Wi-Fi
-
IP67
-
1D/2D barcode scanning
Highly integrated design for widely industry applications
Barcode/RFID/PSAM/NFC/Camera
Comfortable grip
not easily fatigued
Ergonomic handle, anti-slip and anti-fatigue design
It is not easy to get tired after being used for a long time
screens, papers and wristbands
12200mAh Large
Capacity Battery
Power is abundant, working worry-free
Removable handle battery, convenient and fast
Professional barcode scanning
high speed and accuracy
With international professional scan engine
Quickly read 1D/2D/distorted/defaced/old barcode
Keep your work productive at all times
IP67 dustproof
and waterproof
1.5m anti-drop, meet IEC sealing standard
360 ° all-round, super protection, reliable and durable
It can meet the outdoor use needs of rain, snow, fog and other harsh weather
Powerful ultra-long distance
easy batch reading
Industry leading Impinj RFID chips
Batch reading RFID tag up to 15-30 meters
Applications
C80R series mobile computers are widely deployed in logistics, transport, healthcare, retail, manufacturing, warehouse management, attendance management etc.
-
Healthcare
-
Logistics
-
Manufacturing
-
Warehouse
-
Ticketing
-
Retail
Specifications
-
Basic Parameters Size 169X76.8 X 26mm
Weight 660g(including battery)
Display 5.72inch 18:9 HD+(1440*720)
Touch panel Gorillaglass, plated with anti-fingerprint film, supports wet hand operation
Backlight LED Backlit
POWER Removable terminal battery: 4600mAh, 3.8V
Removable handgrip battery: 6000mAh, 3.8V
Working time: more than 8 hours, Standby time:300 hoursSIM SIM+TF: nanosim+nanosim/TFCard USB port Type-c, Support OTG Network connections 4G/3G/2G,Wi-F,GPRS Notification Tone; LED indicator; Vibration Keyboard On-screen keypad, 3 virtual buttons： Backs Home、Menu Audio A microphone, speaker, receiver Button Power key， Two scan keys， Volume +- key, custom key Power adapter Input: 100-240V,50/60HZ 300Ma, Output: 5V,2A Working environment Operating temperature -20℃ to 55℃
Humidity 5% to 95% (Non-condensation)
Drop specification Withstand multiple drops from 4.9 ft / 1.5m to concrete floor in operating temperature range Roll Specification Can Withstand 200 times 1.6 ft/0.5 m rolling impact; meets or exceeds IEC
Vibration Random(10 Hz-30KHz);60 minutes per shaft Electrostatic protection +/- 10kv air discharge +/-6kv contact discharge
Sealing Host IP67
ESD +/-10kv air discharge, +/-6kv contact discharge Wireless Communication WWAN Asia + Europeband: GSM:Band2/3/5/8 WCDMA:Band 1/2/5/8 TD-SCDMA:
Band 34/39 CDMA:Band BCO TDD-LTE:Band 34/38/39/40/41 FDD-LTE:
Band 1/3/5/7/8/20
American band:
GSM:Band2/3/5/8
WCDMA:Band 1/2/4/5 CDMA:Band BCO
TDD-LTE:Band 40/41
FDD-LTE：Band B1/2/4/5/7/28A/28BWIFI 2.4GHz&5GHz Protocol：802.11 a/b/g/n/ac/r/e/i
Fast Roamingnavigation Beidoux Glonass、GPS、GalileOxQZSS
Version Bluetooth 5.0 FAQ 1.No reaction when putting the NFC card close to the device. Step 1: Please make sure that the card-reading function is opened;
Step 2: Check whether the frequency of the card matches well with the protocol; ( Currently, it only supports high-frequency card including MF0，MF1，15693，CPU).2.The requirement of RFID products with UHF to environment. Metal and liquid (water) material have a strong interference to the UHF signals ( the closer to the tag antenna, the stronger interference of the signal); It is able to adopt anti-metal tag in the metal environment, however, it still remains hard to solve problems in liquid environment. 3.There is light emitting from the scanning head but fail to scan. If it fails to scan suddenly in use, the same setting of the scanning head and the barcode to be scanned may possibly result in it. If you change the setting of the scanning head unintentionally, you are supposed to scan other types of barcodes and send the result feedback to Cilico. 4.The left and right scanning button fail to work or only one side button could work Step 1: Please make sure that the left and right scanning options are opened;
Step 2: Close the scanning type APP;
Step 3: Try to scan with system scanning option; if it works, then the device is working properly.5.What am I supposed to do when the reflash process is interrupted? Step 1: Disconnect USB;
Step 2: Take out the battery and install the battery agian;
Step 3: Repeat reflash process.6.The device fails to charge. Step 1: Change the battery or charge with the USB cable and try to start up;
Step2: If it still fails to charge to start up after changing the battery, it is possible that the battery is over discharged. Please keep the charging connection with USB cable, then take out the battery and instsall again, activating the battery by repeating 3-4 times. Try to start up after charging for 30 minutes.7.Why does the device enter factory mode when it is turned on. The possible cause is that the volume - key is pressed when the phone is started up. You can press the Volume - key or select Restart and press the power button to restart the phone. 8.What is the best distance for bar code scanning The optimal scanning distance depends on the size of the bar code. The optimal scanning distance of the large bar code will become longer, while the optimal scanning distance of the small bar code will become smaller. Generally, the optimal scanning distance is between 10-15cm. 9.How do I access the Developer options In Settings/About Phone, click on the Build number 5 times to exit About Phone and Click on system-Advanced in order to see the developer options. 10.The kind of protocol used by UHF International standard 18000-6C protocol used 11.How do I view the device version Enter from device, click Settings - About Phone - Build number 12.How do I restore the device to factory Settings Device interface click Settings - System - Reset Options - Erase all data(factory reset) 13.Why can't the device recognize the phone card and access the Internet by phone Step 1:Ensure that the mobile phone card is installed in the SIM card slot
Step 2:Ensure that the data traffic switch Settings - Traffic Usage - Carrier-data switch are enabled -
Performance Parameter CPU Octa-core 2.0GHz OS Android 13 Memory 4GB RAM/ 64GB ROM Data Collection Bar code Engine Zebra/ Honeywell/Newland
1D Symbologies EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39,
Codabar, UCC/EAN-128, RSS, ITF, ITF14, ITF6, ISSN, ISBN,
Standard 25, Matrix 25,Industrial 25, Plessey, MSI Plessey,
Code 11, Code 93, etc.2D Symbologies PDF417, Micro PDF417, QR Code, Micro QR, DataMatrix,
AZTEC, Maxicode, Composite, etcCamera Front-5MP(optional)
Rear-13MP, autofocus;
Rear camera flash; Support flashlight modeInternet of things function NFC working band:13.56MHz Support Protocol： MifareClassic (MFI) NDEF, NfcV (15693) ,Ultraligh(MF0), IsoDep (CPU MF3) JsoDep (CPU) Read Distance：0-5cm RFID Workingband:CHINA： 920-925MHz; USA: 902-928MHZ；EU: 865-868MHz; Protocol： IS018000-6C/EPCC1G2 Read Distance： around 0.8m depends on thetags Security PSAM Supporting ISO7816 standard, supporting 2PSAM cards
Sensors Light Sensor, distance sensor, gravity accelerometer, geomagnetic sensor, Hall Effect Sensor (Optional) Others Certification CE/CCC/FCC/GMS/AER/RoHS/IP67/TAC/UN38.3
Standard accessories Adapter/data cable/battery/hand strap /NFC test card/UHF test label
Optional accessories Charging cradle /charging cradle adapter/battery/tempered film
